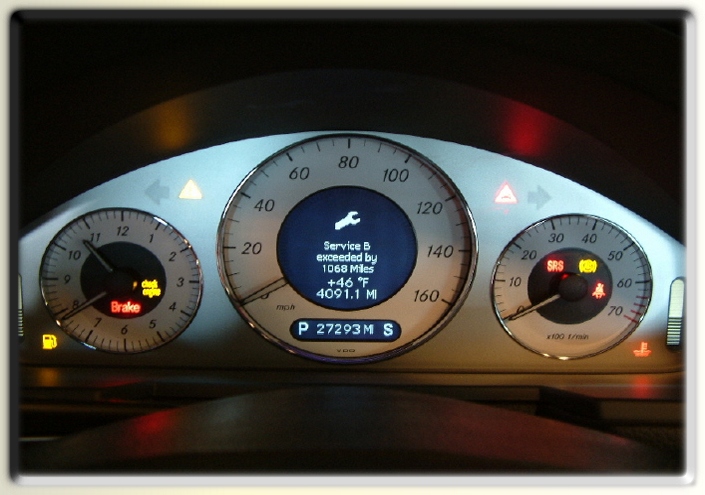

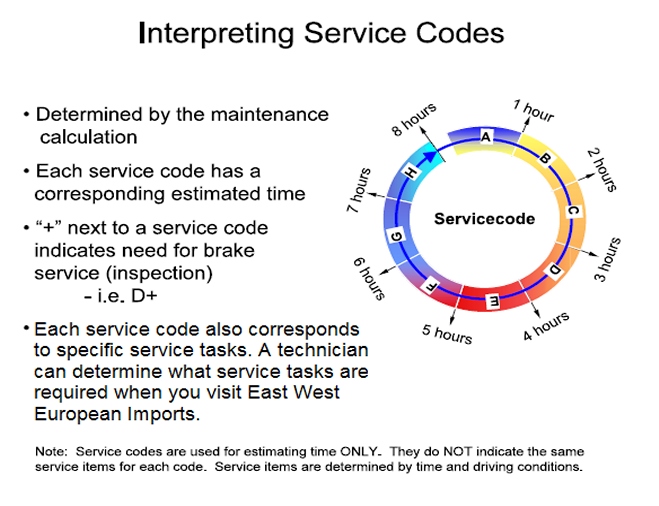

Figure 1a Mercedes FSS+ equipped vehicles display service intervals through the instrument cluster. Shown in Figure 1a. A technician can determine which services are due by accessing the Assyst Plus control unit, or by connecting the Mercedes SDS diagnostic system to the vehicle. |

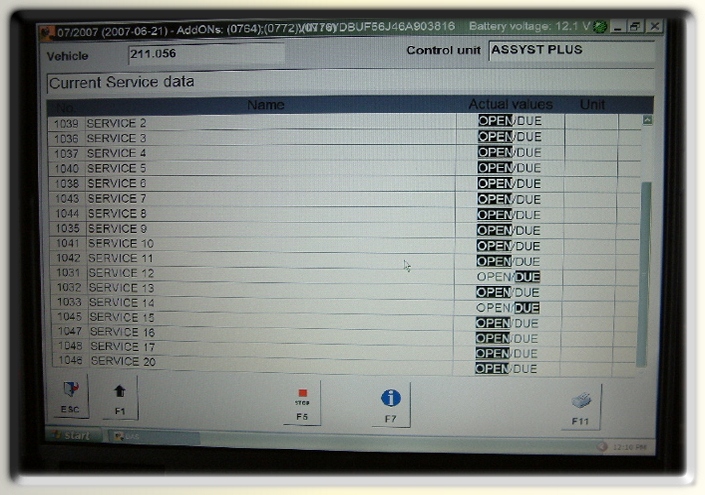

Figure 1b Figure 1b shows the Assyst Plus control unit through the Mercedes SDS diagnostic system connected to the vehicle. The vehicle shown in the photo is due for a Service 12 and 14. Also see Figure 2a |

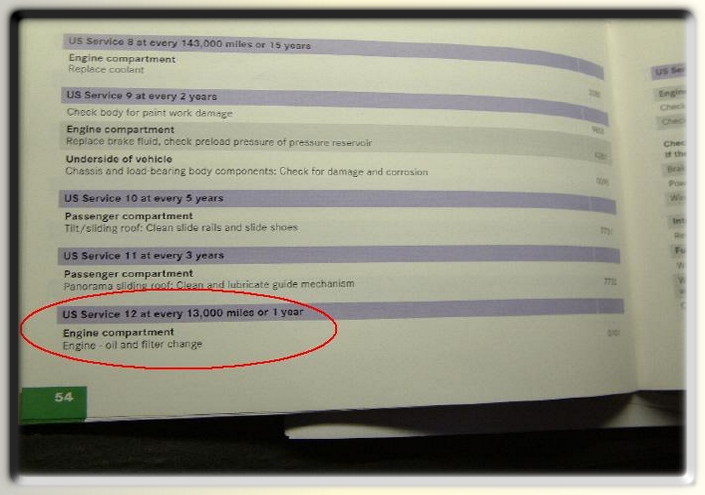

Figure 2a Figure 2a shows the tasks in the owner's manual as recommended by Mercedes for Service 12. |
Figure 2b Figure 2b shows the tasks in the owner's manual as recommended by Mercedes for Service 14. |

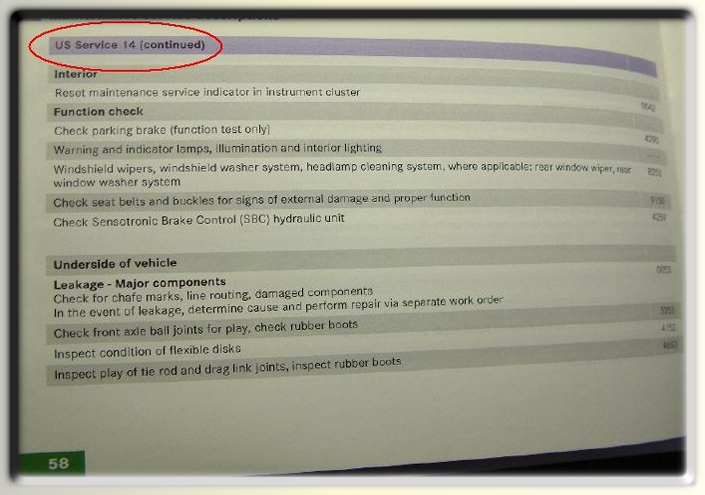

Figure 2c Figure 2c shows the tasks in the owner's manual as recommended by Mercedes for Service 14. |

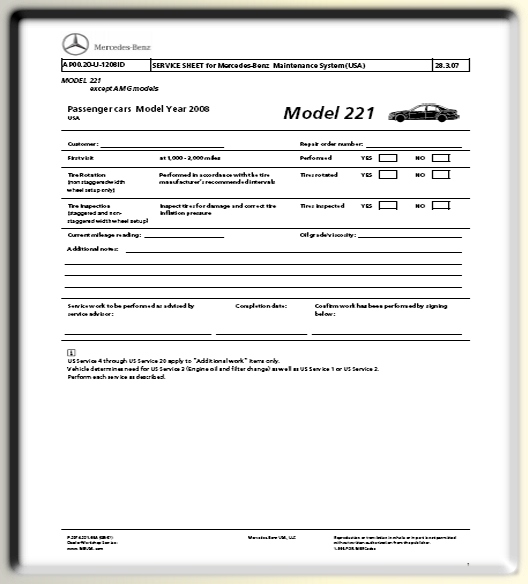

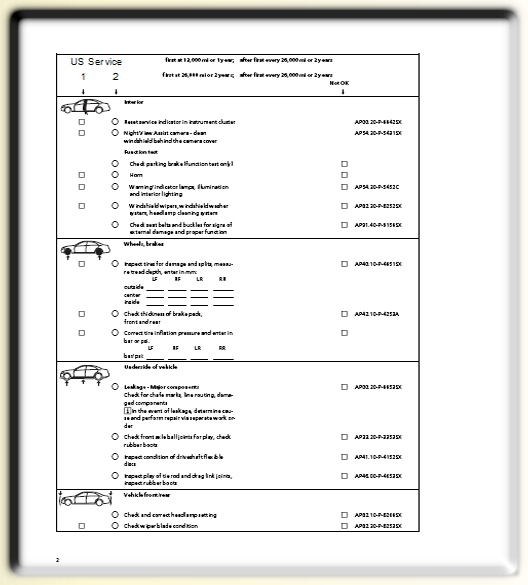

Figure 3a Figure 3a shows the standard FSS+ service sheet. These are the factory service sheets that we base our service work on. |
Figure 3b Figure 3b shows the standard FSS+ service for services 1 and 2. The left most column are the tasks for Service 1. The column to the right of column 1 are the tasks for Service 2. |

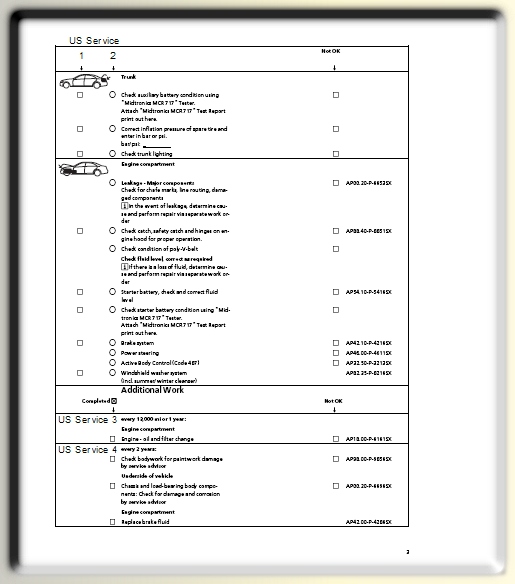

Figure 3c Figure 3c shows the continued standard FSS+ service for services 1 and 2. The left most column are the tasks for Service 1. The column to the right of column 1 are the tasks for Service 2. At the bottom of the page are the tasks for services 3 and 4. |

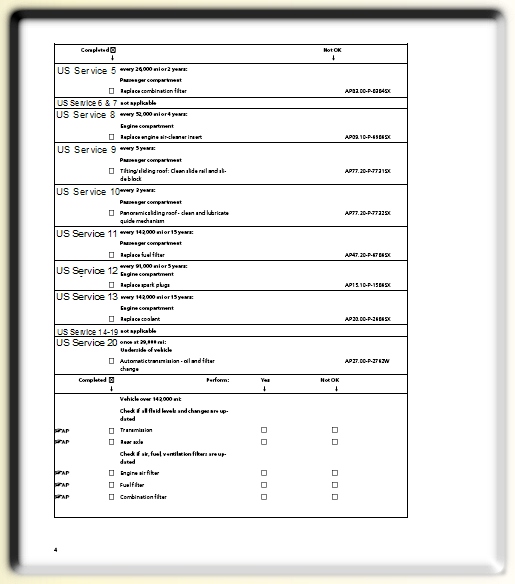

Figure 3d Figure 3d shows the standard FSS+ service for services 5 thru 20. |

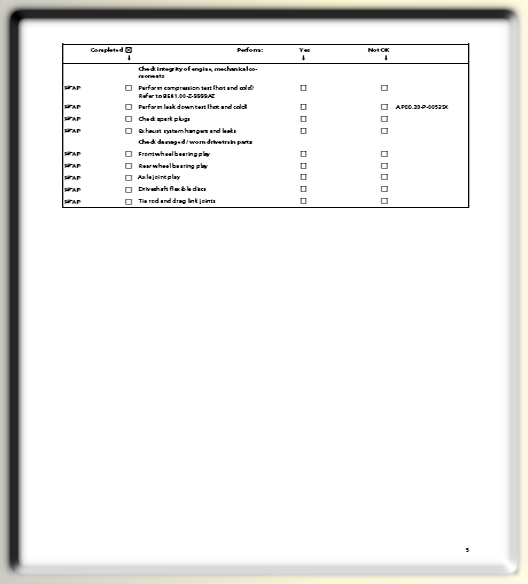

Figure 3e Figure 3e shows the continued standard FSS+ service for service 20. |
